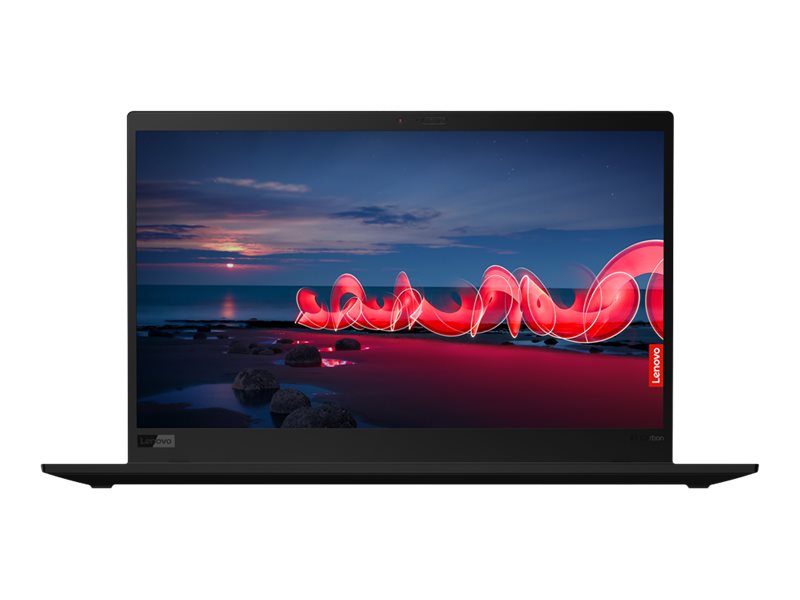

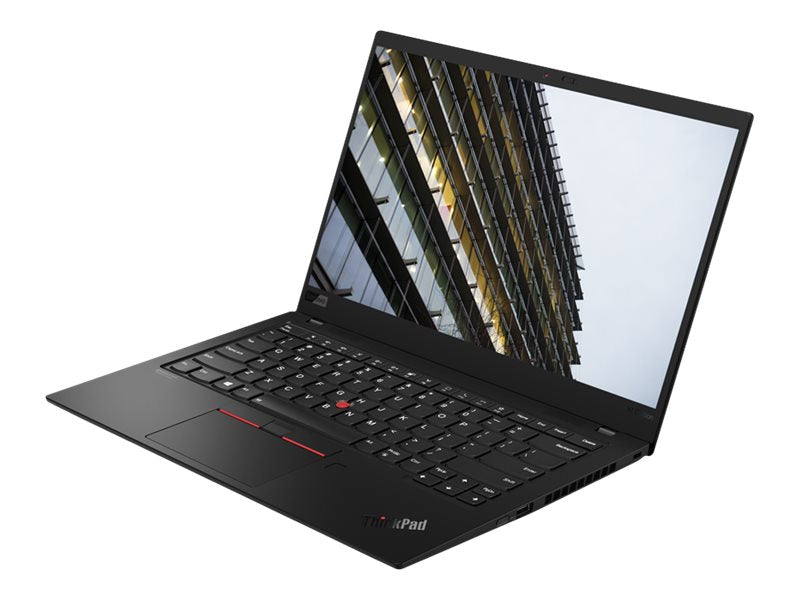

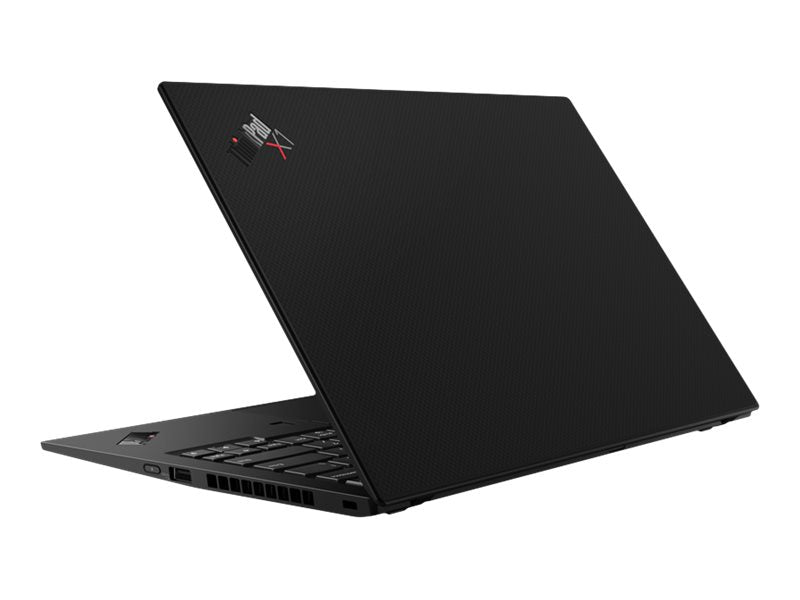

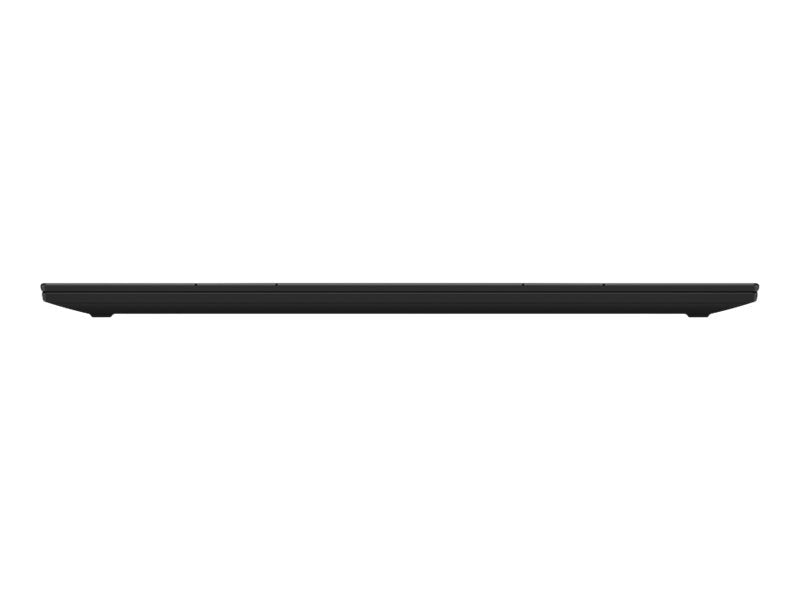

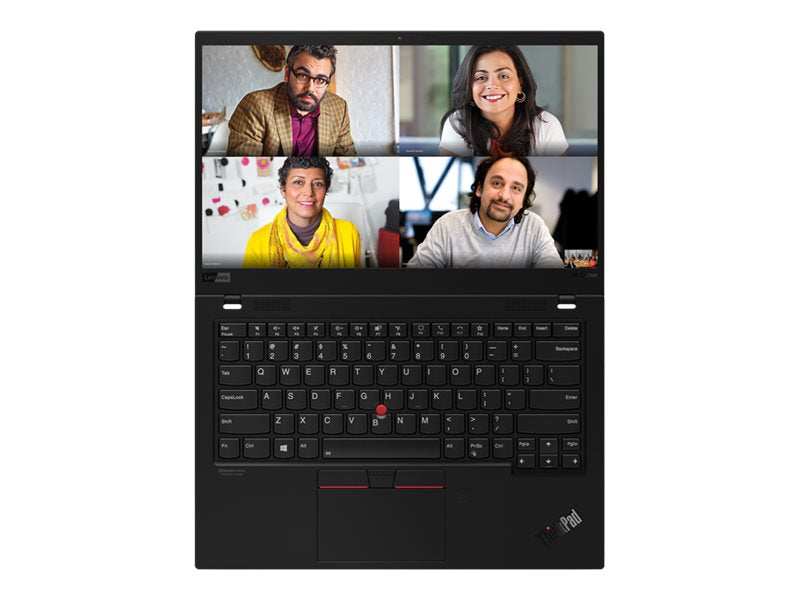

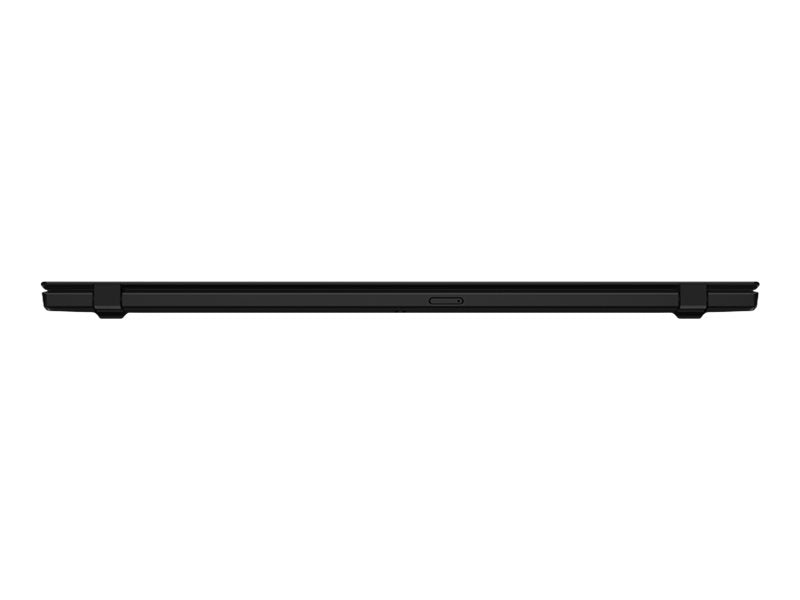

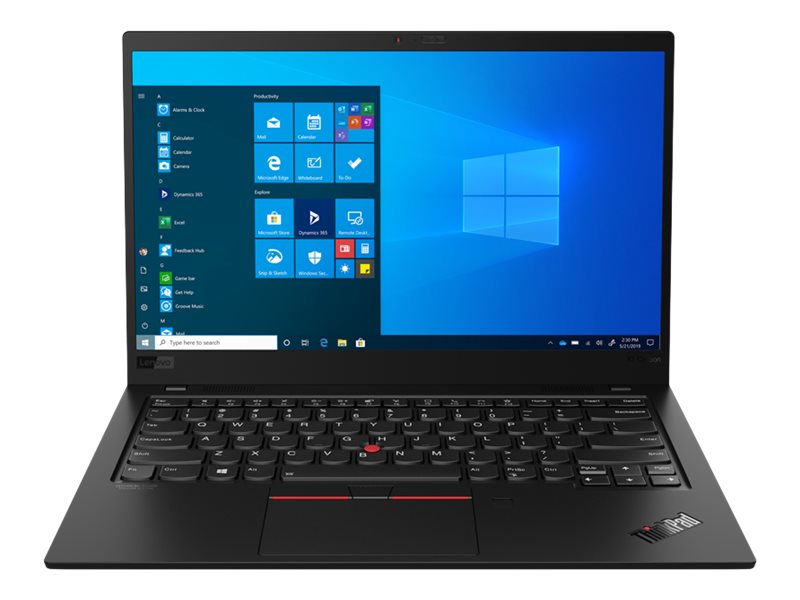

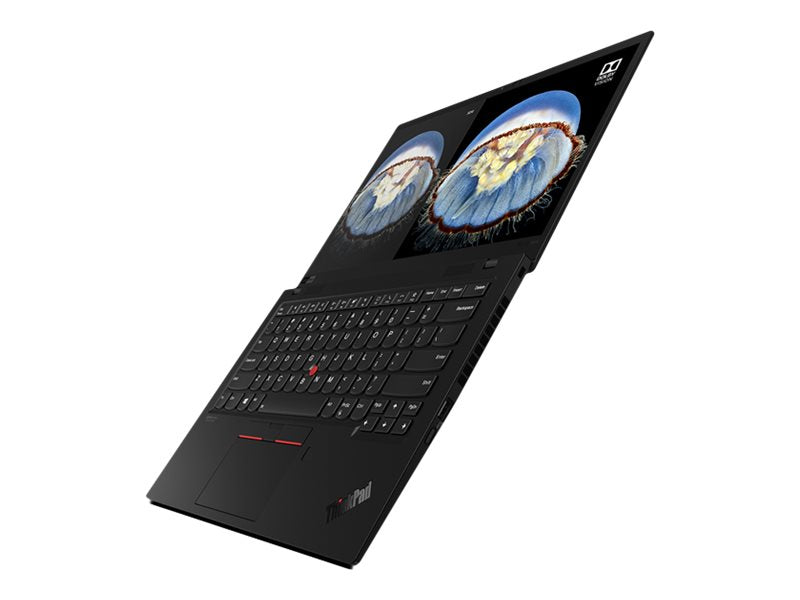

Lenovo ThinkPad X1 Carbon Gen 8 (US-Used)
Lenovo ThinkPad X1 Carbon Gen 8
  • Ultrabook
  • Intel Core i7
  • 10610U / up to 4.9 GHz
  • Win 10 Pro 64-bit
  • UHD Graphics
  • 16 GB RAM
  • 512 GB SSD TCG Opal Encryption
  • 14" touchscreen 1920 x 1080 (Full HD)
  • Wi-Fi 6
  • black paint

General Information
Category Notebook computers
Description Lenovo ThinkPad X1 Carbon Gen 8 20UA - Ultrabook - Intel Core i7 - 10610U / up to 4.9 GHz - Win 10 Pro 64-bit - UHD Graphics - 16 GB RAM - 512 GB SSD TCG Opal Encryption - 14" touchscreen 1920 x 1080 (Full HD) - Wi-Fi 6 - black paint
Manufacturer Lenovo
UNSPSC 43211503
Main Specifications
Audio Input / Type Quad array microphone
Dimensions & Weight / Depth 21.7 cm
Dimensions & Weight / Height 1.49 cm
Dimensions & Weight / Weight 1.09 kg
Dimensions & Weight / Width 32.3 cm
Display / Diagonal Size 14 in
Display / Diagonal Size (metric) 35.6 cm
Display / Native Resolution 1920 x 1080
Display / Type LED
Display / Widescreen Display Yes
Hard Drive / Capacity 512 GB
Header / Brand Lenovo
Input Device / Type
  • Keyboard
  • TrackPoint
  • UltraNav
Miscellaneous / Product Color Black
Networking / Data Link Protocol
  • Bluetooth 5.0
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax
  • Bluetooth 5.0
Optical Storage / Drive Type No optical drive
Optical Storage / Type None
OS Provided / Type Windows 10 Pro 64-bit Edition
Packaged Quantity 1
Processor / Generation 10
Processor / Manufacturer Intel
Processor / Number of Cores Quad-Core
Processor / Processor Number I7-10610U
Processor / Type Core i7
RAM / Memory Speed 2133 MHz
RAM / Technology LPDDR3 SDRAM
System / Hard Drive Capacity 512 GB
System / Notebook Type Ultrabook
System / Security Devices Fingerprint reader
Video Output / Graphics Processor Intel UHD Graphics
AC Adapter
Input AC 120/230 V (50/60 Hz)
Output 65 Watt
Audio & Video
Camera Yes - 720p
Camera Features ThinkShutter camera privacy
Codec USI 4551-513711-00
Compliant Standards High Definition Audio, Dolby Atmos
Graphics Processor Intel UHD Graphics
Sound Four speakers, quad array microphone
Battery
Capacity 51 Wh
Run Time Up to 19.5 hours
Technology 4-cell lithium ion
Communications
Features Gigabit Ethernet via optional Ethernet (RJ-45) adapter
Wireless Bluetooth 5.0, 802.11a/b/g/n/ac/ax
Wireless Controller Intel Wi-Fi 6 AX 201
Connections & Expansion
Interfaces Details
  • USB 3.2 Gen 1
  • USB 3.2 Gen 1 (Always On)
  • 2 x USB-C 3.2 Gen 2 (supports Thunderbolt 3, DisplayPort Alt Mode) (Power Delivery)
  • HDMI
  • Headphone/microphone combo jack
  • Lenovo Ethernet extension connector
  • Dock
Dimensions & Weight
Dimensions (WxDxH) 32.3 cm x 21.7 cm x 1.49 cm
Weight 1.09 kg
Display
Color Gamut 72%
Features Anti-glare, Wide Viewing Angle, capacitive touch screen, 170° viewing angle
Image Aspect Ratio 16:9
Image Brightness 400 cd/m²
LCD Backlight Technology LED backlight
Resolution 1920 x 1080 (Full HD)
Touchscreen Yes (10-point multi-touch)
Type 14"
Widescreen Yes
General
Operating System Windows 10 Pro 64-bit Edition
Product Type Ultrabook
Input
Features Spill-resistant, multi-touch touchpad, buttonless touchpad, Fn keys with Unified Communications controls
Keyboard Backlight Yes
Type Keyboard, TrackPoint, UltraNav
Memory
RAM 16 GB (provided memory is soldered)
Rated Speed 2133 MHz
Speed 2133 MHz
Technology LPDDR3 SDRAM
Miscellaneous
Case Material Carbon fiber, magnesium alloy
Color Black paint
Compliant Standards RoHS
Dockable Yes
Features Administrator password, hard drive password, power-on password, RapidCharge, MIL-STD-810G tested
Included Accessories USB-C power adapter
SAR Value 1.49 W/kg (body), 1.49 W/kg (limb)
Security Trusted Platform Module (TPM 2.0) Security Chip, fingerprint reader
Security Slot Type Kensington mini security slot
Specific Absorption Rate (SAR)
  • 1.49 W/kg (body)
  • 1.49 W/kg (limb)
Theft/Intrusion Protection Security lock slot (cable lock sold separately)
Processor / Chipset
64-bit Computing Yes
Cache 8 MB
CPU Intel Core i7 (10th Gen) 10610U / 1.8 GHz
Features Integrated memory controller
Max Turbo Speed 4.9 GHz
Number of Cores Quad-Core
Storage
Main Storage 512 GB SSD M.2 2280 PCIe 3.0 x4 - TCG Opal Encryption - Toshiba
Sustainability Information
ENERGY STAR Certified Yes
EPEAT Compliant EPEAT Gold
TCO Certified -
